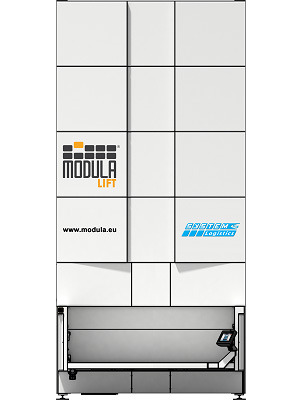

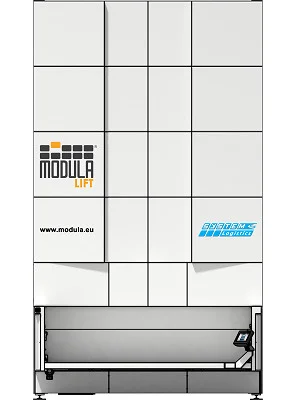

Modula Lift
Automatic vertical storage systems
Discover Modula Lift, the innovative vertical storage lift with more than 20 years of success in the market. With thousand of successful custom installations in facilities throughout the world, Modula Lift is amongst the most reliable and advanced vertical storage solution available on the market. The revolutionary design of Modula Vertical Lift Modules allows shop floors, distribution centers, and facilities of all sizes to recover or preserve precious space while improving the speed, accuracy, and efficiency of their picking operations.
Modula® Lift technical highlights
Modula's vertical lifts are the ideal storage solution for industrial products, components and spare parts for all possible environments and industries. Many companies have chosen Modula to help organize and improve their work-flows, thanks to its flexibility, wide range of models available, its superior design and ease of use.
Modula units can be used stand-alone or with the available WMS software to manage the space and utilization of units, increasing productivity further.
We also offer a wide range of options and accessories to provide increased speed, ease of use and productivity in your operation.
Modula LIFT is available in the followings models:
MA - MAD
MC - MCD
MX - MXD
ML - MLD
154,500 lbs of gross unit load capacity
9,050 sq.ft of traditional storage in only 150 sq.ft
- Unit heights | from 10’ – 10” (3,300 mm) to 46’ – 3” (14,100 mm)
- Unit height increments on | 7.87” (200 mm)
- Tray storage adjustability | 1.0” (25 mm)
- Tray widths | 74.80” (1,900 mm), 98.42” (2,500 mm), 122.05” (3,100 mm) & 161.41” (4,100 mm)
- Tray depths | 25.75” (654 mm) & 33.74” (857 mm)
- Net tray payload capacities | 551 lbs (250 kg), 1,102 lbs (500 kg) and 1,653 lbs (750 kg)
- Net unit load capacity | 132,486 lbs (60,000 kg)
- Gross unit load capacity | 154,567 lbs (70,000 kg)
- Maximum height of stored materials | 27.36” (695 mm)
- Throughput | up to 120 trays / hr. (depending on the unit’s configuration)
- Operator interface | rugged 10.4” color touchscreen operator control console
- Type of bays | internal or external with single or dual tray delivery
- Number of Bays | up to 3, also higher than ground and on the same side
- Minimal energy consumption | 4 Hp / 3kW vertical axis motor
- Vertical axis driven by 2 steel reinforced toothed belts
- Extractor’s vertical guidance system with 8 HDPE wheels for each side
- Dynamic allocation of trays depending on specific materials height
- Automatic weight control at the intake of each tray
- Internal galvanized steel structure
| Model | Tray Width (in/mm) | Tray Depth (in/mm) | Tray Wall Height (in/mm) | Maximum Tray Payload Capacity (lbs/kg) | Unit Footprint Internal Bay (W x D in/mm) | Unit Footprint External Bay (W x D in/mm) |
|---|---|---|---|---|---|---|
| MA25 |
74.80 (1,900) |
25.75 (654) |
1.77-2.75-4.72 (45-70-120) |
551 (250) |
91.22x100.63 (2,317x2,556) |
91.22x127.80 (2,317x3,246) |
| MA25D |
74.80 (1,900) |
33.74 (857) |
1.77-2.75-4.72 (45-70-120) |
551 (250) |
91.22x124.61 (2,317x3,165) |
91.22x159.76 (2,317x4,058) |
| MA50 |
74.80 (1,900) |
25.75 (654) |
2.75-4.72 (70-120) |
1,102 (500) |
91.22x100.63 (2,317x2,556) | 91.22x127.80 (2,317x3,246) |
| MA50D |
74.80 (1,900) |
33.74 (857) |
2.75-4.72 (70-120) |
1,102 (500) |
91.22x124.61 (2,317x3,165) |
91.22x159.76 (2,317x4,058) |
| MA75 |
74.80 (1,900) |
25.75 (654) |
2.75-4.72 (70-120) |
1,653 (750) |
91.22x100.63 (2,317x2,556) | 91.22x127.80 (2,317x3,246) |
| MA75D |
74.80 (1,900) |
33.74 (857) |
2.75-4.72 (70-120) |
1,653 (750) |
91.22x124.61 (2,317x3,165) |
91.22x159.76 (2,317x4,058) |
| Model | Tray Width (in/mm) | Tray Depth (in/mm) | Tray Wall Height (in/mm) | Maximum Tray Payload Capacity (lbs/kg) | Unit Footprint Internal Bay (W x D in/mm) | Unit Footprint External Bay (W x D in/mm) |
|---|---|---|---|---|---|---|
| MC25 | 98.42 (2,500) | 25.75 (654) | 1.77-2.75-4.72 (45-70-120) | 551 (250) | 114.84x100.63 (2,917x2,556) | 114.84x127.80 (2,917x3,246) |
| MC25D | 98.42 (2,500) | 33.74 (857) | 1.77-2.75-4.72 (45-70-120) | 551 (250) | 114.84x124.61 (2,917x3,165) | 114.84x159.76 (2,917x4,058) |
| MC50 | 98.42 (2,500) | 25.75 (654) | 2.75-4.72 (70-120) | 1,102 (500) | 114.84x100.63 (2,917x2,556) | 114.84x127.80 (2,917x3,246) |
| MC50D | 98.42 (2,500) | 33.74 (857) | 2.75-4.72 (70-120) | 1,102 (500) | 114.84x124.61 (2,917x3,165) | 114.84x159.76 (2,917x4,058) |
| MC75 | 98.42 (2,500) | 25.75 (654) | 2.75-4.72 (70-120) | 1,653 (750) | 114.84x100.63 (2,917x2,556) | 114.84x127.80 (2,917x3,246) |
| MC75D | 98.42 (2,500) | 33.74 (857) | 2.75-4.72 (70-120) | 1,653 (750) | 114.84x124.61 (2,917x3,165) | 114.84x159.76 (2,917x4,058) |
| Model | Tray Width (in/mm) | Tray Depth (in/mm) | Tray Wall Height (in/mm) | Maximum Tray Payload Capacity (lbs/kg) | Unit Footprint Internal Bay (W x D in/mm) | Unit Footprint External Bay (W x D in/mm) |
|---|---|---|---|---|---|---|
| MX25 | 122.05 (3,100) | 25.75 (654) | 1.77-2.75-4.72 (45-70-120) | 551 (250) | 138.46x100.63 (3,517x2,556) | 138.46x127.80 (3,517x3,246) |
| MX25D | 122.05 (3,100) | 33.74 (857) | 1.77-2.75-4.72 (45-70-120) | 551 (250) | 138.46x124.61 (3,517x3,165) | 138.46x159.76 (3,517x4,058) |
| MX50 | 122.05 (3,100) | 33.74 (857) | 2.75-4.72 (70-120) | 1,102 (500) | 138.46x100.63 (3,517x2,556) | 138.46x127.80 (3,517x3,246) |
| MX50D | 122.05 (3,100) | 33.74 (857) | 2.75-4.72 (70-120) | 1,102 (500) | 138.46x124.61 (3,517x3,165) | 138.46x159.76 (3,517x4,058 |
| MX75 | 122.05 (3,100) | 25.75 (654) | 2.75-4.72 (70-120) | 1,653 (750) | 138.46x100.63 (3,517x2,556) | 138.46x127.80 (3,517x3,246) |
| MX75D | 122.05 (3,100) | 33.74 (857) | 4.72 (120) | 1,653 (750) | 138.46x124.61 (3,517x3,165) | 138.46x159.76 (3,517x4,058) |
| Model | Tray Width (in/mm) | Tray Depth (in/mm) | Tray Wall Height (in/mm) | Maximum Tray Payload Capacity (lbs/kg) | Unit Footprint Internal Bay (W x D in/mm) | Unit Footprint External Bay (W x D in/mm) |
|---|---|---|---|---|---|---|
| ML25 | 161.41 (4,100) | 25.75 (654) | 2.75-4.72 (70-120) | 551 (250) | 177.83x100.63 (4,517x2,556) | 177.83x127.80 (4,517x3,246) |
| ML25D | 161.41 (4,100) | 33.74 (857) | 2.75-4.72 (70-120) | 551 (250) | 177.83x124.61 (4,517x3,165) | 177.83x159.76 (4,517x4,058) |
| ML50 | 161.41 (4,100) | 25.75 (654) | 4.72 (120) | 1,102 (500) | 177.83x100.63 (4,517x2,556) | 177.83x127.80 (4,517x3,246) |
| ML50D | 161.41 (4,100) | 33.74 (857) | 4.72 (120) | 1,102 (500) | 177.83x124.61 (4,517x3,165) | 177.83x159.76 (4,517x4,058) |
| ML75 | 161.41 (4,100) | 25.75 (654) | 4.72 (120) | 1,653 (750) | 177.83x100.63 (4,517x2,556) | 177.83x127.80 (4,517x3,246) |
| ML75D | 161.41 (4,100) | 33.74 (857) | 4.72 (120) | 1,653 (750) | 177.83x124.61 (4,517x3,165) | 177.83x159.76 (4,517x4,058) |
